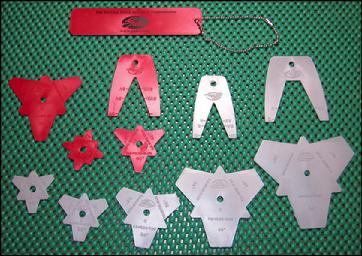

Belt Drive Tools Sonic Tension Meter • EZ Align® • Tool Box • Sheave Gauges • Design Flex® Pro   _____________________________________________________________________ Sonic Belt Tension Meter We Stock Sonic Belt Tension Meters And Accessories - Call 704-233-9222 (Click) Sonic Tension Meter Model 507C (click)   If you want the quickest and most accurate way to check belt tension, any belt tension, you need to get the Sonic Tension Meter Model 507C. We are a Gates PT Stocking Distributor for the Sonic Tension Meter Model 507C for Belt Drive Tension Testing. We can compete with any distributor on this product so if you are Quoted a lower price by an order grabber please get back to us – thanks! The big difference is that we stock the 507C Sonic Tension Meters in quantity! Most industrial distributors play the “Distributor Shuffle” on special items like a tension tester where one location has one item and “shuffle ships” it to the buying plant for the selling location. No question our stock is large and very competitive compared to what is out there and we can ship orders received as late as 6:30 pm on all of the items in stock! 7420-0507 Sonic Tension Meter Model 507C Belt Drive Tension Testing Tool including Cord Microphone Sensor, manual & soft carrying case . . . . $588.00 US FOB Wingate, North Carolina. Important Note: Under no circumstances, will we sell or ship Sonic Tension Meters or EZ Align Laser pulley alignment tools outside of the United States of America! Please contact Gates Corporation for a Distributor in your country! If you are in the USA Email us for a Quotation – thanks! (click) Note: We need all of your contact information in order to Quote! Sonic Meter - Options & Accessories are shown below! (click) Sonic Belt Tension Meter Flier   Every 507C Sonic Tension Meter comes permanently calibrated from the factory! The 507C Sonic Tension Meter is a frequency sensing device and after selling them for years we have not had one get out of calibration! We test all Sonic Tension Meters being packed for shipment using Chromatic Frequency Tuning software. With the Chromatic Frequency Tuning software set at and generating 440.0 Hz the Sonic Tension Meters register exactly the same frequency 440.0 Hz! Please see the examples in the photographs below. Sonic Tension Meter 507C Frequency Check (click) Sonic Tension Meter 507C "two-fer" - what accuracy! (click) _____________________________________________________________________ Sonic Meter - Options & Accessories G212CV Inductive Sensor - with magnets (click)       7420-0212 Inductive Sensor - with (10) magnets is used for heavy belts . . . . $287.00 US Above price is for Inductive Sensor with Magnets option only. One magnet shown in the red circle is normally taped to the belt before it is "thumped". Note: The Sonic Tension Meter is not included in this price and is Quoted separately above.       7420-0205 Flat Flexible Microphone Sensor (used instead of the Cord Mic) . . . . $107.00 US Above price is for the New Flat Flexible Microphone Sensor option which can be used instead of the standard Cord Microphone Sensor which is delivered with the Meter. Note: The Sonic Tension Meter is not included in this price and is Quoted separately above. G205CV Flat Flexible Microphone Sensor (click) G206CV Cord Microphone Sensor (click)       7420-0206 Cord Microphone Sensor (replacement) . . . . $87.00 US The standard Cord Microphone Sensor is shown mounted on the Sonic Tension Meter being held near the large belt in the drive picture shown below. Important Note: Under no circumstances, will we sell or ship Sonic Tension Meters or EZ Align Laser pulley alignment tools outside of the United States of America! Please contact Gates Corporation for a Distributor in your country! Sonic Meter PowerPoint Show Sonic Belt Tension Meter Manual Design Flex Pro Application Notes Belt Maintenance   We have had several customers ask how they can test their 507C Sonic Tension Meters in house? And, What kind of testing device are we using - which is shown on our website? You can easily check the Calibration yourself, in house, as we do on all 507C Sonic Tension Meters that we sell! We check the Calibration using downloadable "Guitar Tuner" software on an iPhone! If you have access to an iPhone, iPad or, a 2nd or 3rd generation iPod Touch with an external mic connected to the iPod Touch - just download the Cleartune - Chromatic Tuner application for $3.99 US from the App Store on the iPhone. We set the Cleartune software at 440.0 Hz when we test the Sonic Meters, or any optional sensors and we have never found any out of calibration. You can use any frequency you want (and we have) as the Sonic Meter shows how accurate it is at all the frequencies but, we settled on 440.0 Hz for all units being shipped. Note: you can use any tuner that displays the frequency it is generating! Please see the complete technical explanation of the Sonic Tension Meter Accuracy below and thanks for using the Gates 507C Sonic Tension Meters.   Sonic Tension Meter 507C Frequency Check (click) Sonic Tension Meter Battery Life Sonic Tension Meter Accuracy _____________________________________________________________________ Design Flex® Pro Software Select the best drive for your application quickly! Download your copy now. Design Online with Design Flex ® Web™ Download the Design Flex Pro Application Notes. Note: If you have the Sonic Belt Tension Meter and don't have the free Design Flex® Pro Software you are missing an important key to correct drive selection and proper drive tension / life! _____________________________________________________________________ Sheave Gauges - English and Metric       Sheave Gauges for checking your V Belts & Sheaves! 7420-0014 Sheave Gauge - English . . . $5.00 US 7420-0013 Sheave Gauge - Metric . . . . $5.00 US G014SV Sheave Gauge - English shown (click) Drive Products & PM Guide (click)       The Gates Industrial Drive Products & PM Guide - AKA the Belt Drive Bible! Note: We include the Gates Industrial Drive Products & PM Guide packed in with every Sonic Tension Meter purchased from us!   Gates Belt Installation and Maintenance Toolbox! _____________________________________________________________________   NEW Belt Installation and Maintenance Toolbox (Click)   The 7420-2000 Belt Installation & Maintenance Tool Box - includes the following components: 1 ea. 7420-1000 EZ Align Precision Laser Belt Drive Alignment Tool with Class II Laser including Laser Reflector and manual. 1 ea. KX-1050set EZ Align Offset Bracket Kit 1 ea. 7420-0507 Sonic Tension Meter Model 507C Belt Drive Tension Testing Tool including manual. 1 ea. 7420-0205 Flat Flexible Microphone Sensor 1 ea. 7420-0206 Cord Microphone Sensor 1 ea. 7420-0212 Inductive Sensor - with (10) magnets 1 ea. 7420-0014 Sheave Gauge - English 1 ea. 7420-0013 Sheave Gauge - Metric 1 ea. 19998-C Gates Pocket Preventative Maintenance Guide Price: F.O.B. Our Warehouse Wingate, North Carolina $ Best Price in the USA Please Note: Since the 7420-2000 Belt Installation & Maintenance "Tool Box" has everything shown on the "Tool Box" flyer - we no longer quote as pictured or per the parts list above! Most of our customers prefer to purchase the 7420-2000-V Special Tool Box as they prefer to “Have it Their Way” - with the Tool Box having only the options they need! Any individual items can always be purchased separately later and we can configure and quote the "Tool Box" with only the items that you require - which come directly from our inventory! If you are in the USA Email us for a Quotation – thanks! (click) Note: We need all of your contact information in order to Quote! NEW Belt Installation and Maintenance Toolbox Sonic Belt Tension Meter w/ Standard Cord Microphone Sensor - Get Your Belt Tension Correct! _____________________________________________________________________ EZ Align® Precision Belt Drive Laser Alignment Tool The EZ Align® Precision Laser pulley alignment system is lightweight, compact and durable. The unit magnetically attaches to the inside or outside face of any pulley or sprocket and has no small parts or targets that can get lost. We use our proven reflected laser beam technology for maximum angular resolution, thus providing you with the most reliable and accurate readings that no other method or tool can match. The features of the EZ Align® Precision Laser are as follows: Reduces vibration and belt noise Prolongs belt and pulley life Reduces down time and energy costs Fast and easy Shows angular, parallel, and offset simultaneously No training required One-person operation More accurate and efficient than any other tool or conventional method Uses proven reflected laser beam technology Used for shots up to 6 ft. or better The EZ Align® Precision Laser pulley alignment system can measure spans up to 6 ft. or better with any size pulley, large or small. A laser line is projected from the EZ Align® transmitter to the reflector mounted on the opposite pulley. A reference line on the reflector indicates offset and vertical angle misalignment immediately. The laser line is then automatically reflected back to the transmitter’s reference line to show horizontal angle misalignment. This ensures all major aspects of pulley misalignment are resolved. This tool is so easy to use, a single operator can perform the alignment task in minutes with no training! 7420-1000 EZ Align® Precision Laser Belt Drive Alignment Tool with Class II Laser including Laser Reflector, manual & hard carrying case . . . . $960.00 US FOB Wingate, North Carolina. Important Note: Under no circumstances, will we sell or ship EZ Align Laser pulley alignment tools outside of the United States of America! Please contact Gates Corporation for a Distributor in your country! If you are in the USA Email us for a Quotation – thanks! (click)   EZ Align Precision Laser pulley alignment system - To Order Call 704-233-9222 EZ Align Flier EZ Align Manual Gates Toolbox _____________________________________________________________________ Pulley Alignment Trainer VMPAT-02 Machine Pulley Alignment Trainer (click) VMPAT-02 Machine Pulley Alignment Trainer with one fixed and one adjustable shaft enabling parallel and angular adjustments . . . . $695.00 US FOB Wingate, North Carolina. Call 704-233-9222 or request a Quotation by email.   Send E-mail   _____________________________________________________________________ We accept Purchase Orders, Visa and Master Card cards direct. Or if you prefer, you can pay us securely with any major credit card through PayPal! Contact us at 704-233-9222 or by email for details. Top of Page ___________________________________________________________
